Key benefits of LORENTZ "S"
- Easy, no-tool installation
- Durable positive cavity pump
- Top quality, durable materials
- Fully waterproof for outdoor use

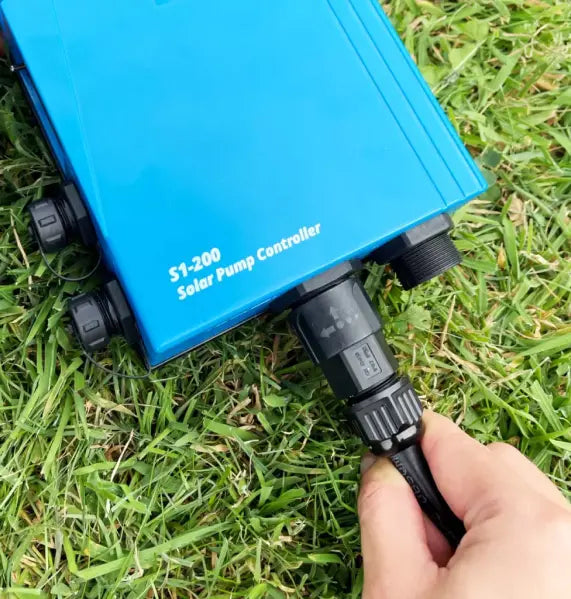

- Unique plugs eliminate incorrect connections
- Built-in data storage & Bluetooth controls via app
- Easy maintenance & control from our mobile app
Size your self-install solar pump kit

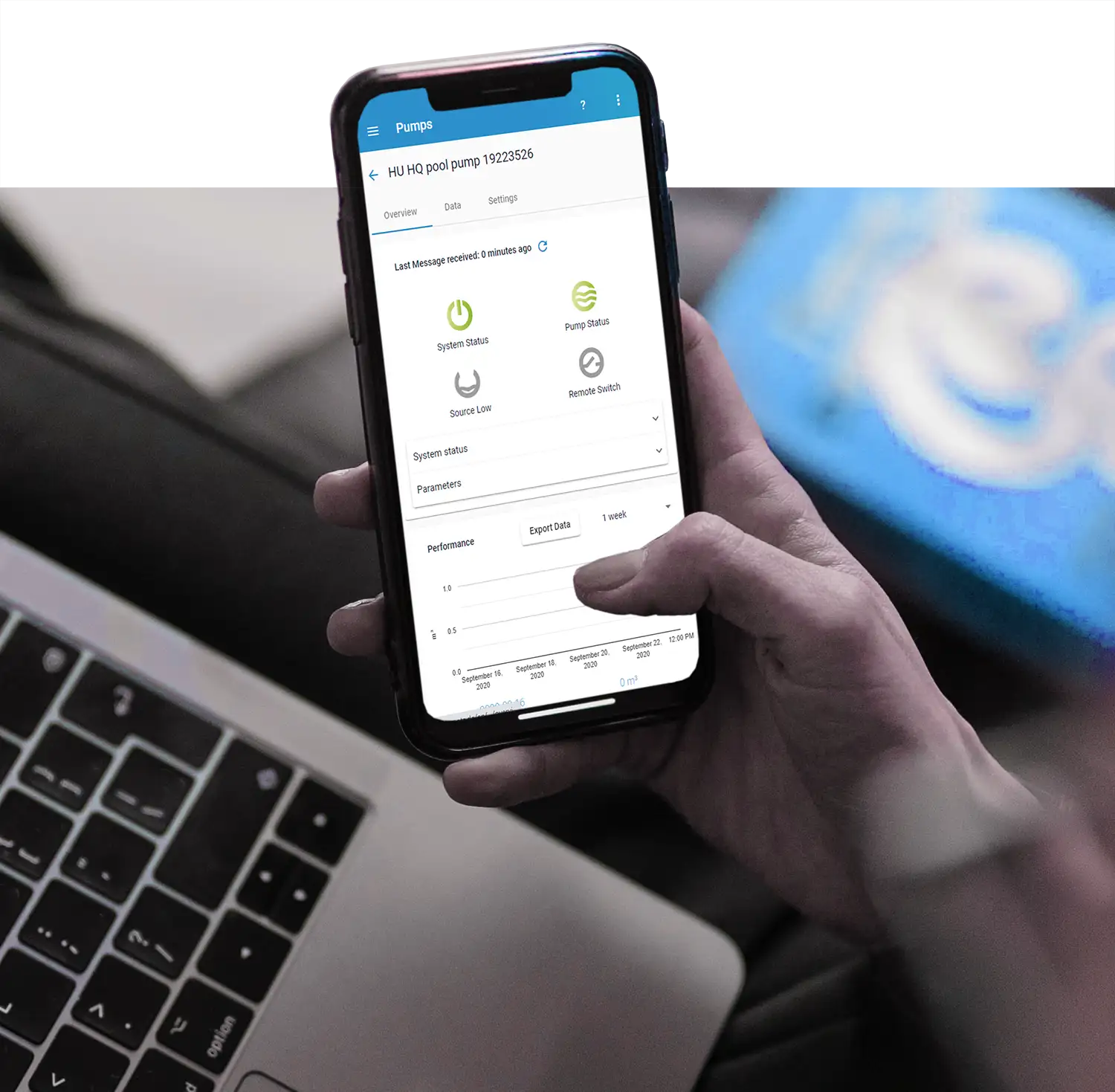

The LORENTZ CONNECTED apps
LORENTZ systems integrate fluidly with the LORENTZ Pumpscanner & LORENTZ Assistant apps, available on the Google Play store. These apps allow you to remotely monitor & control your LORENTZ pumps, view real-time & historical data, & access advanced settings including timers, speed control, & pressure levels.
Example application types

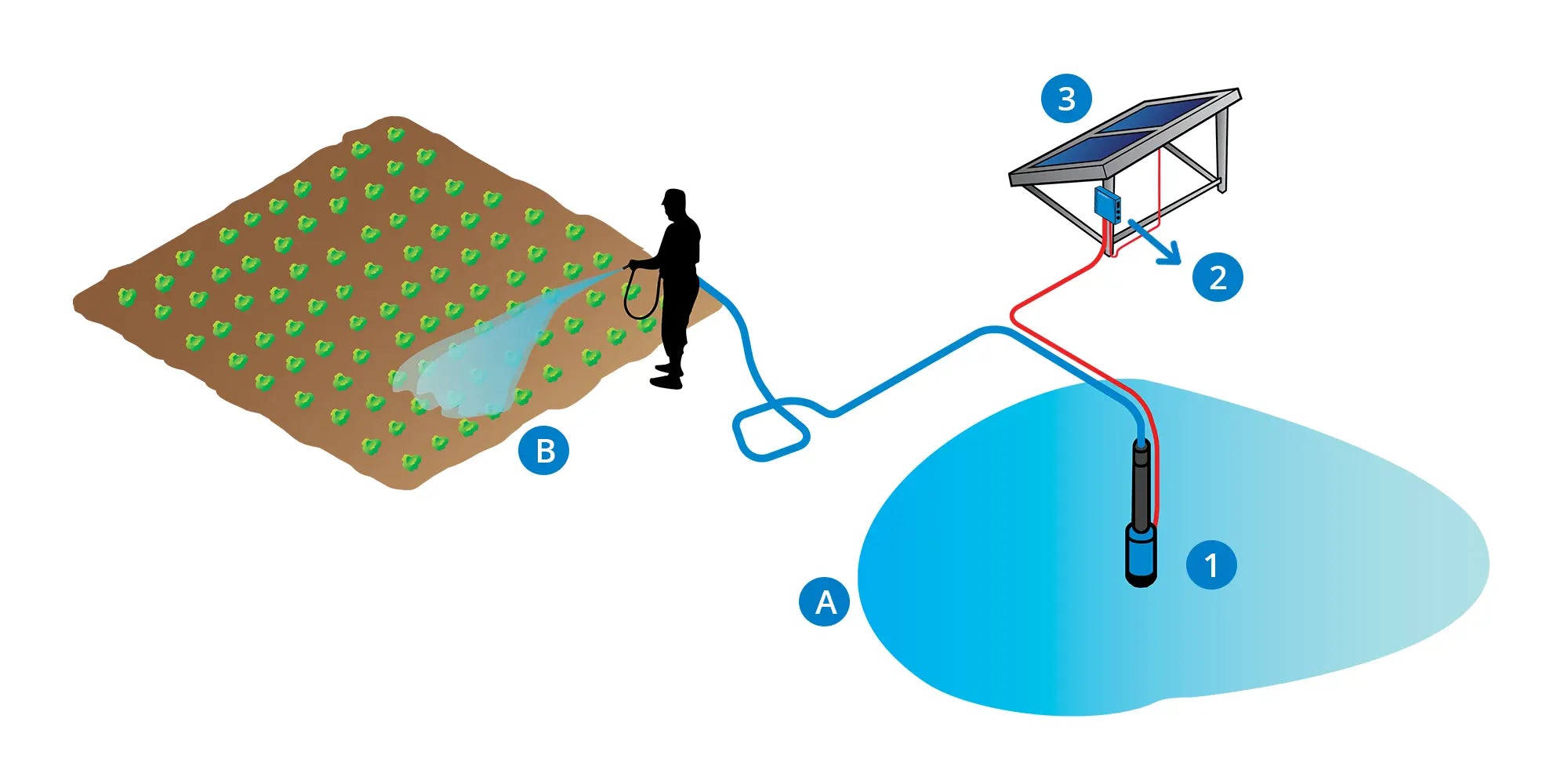

S1-200 used to irrigate a field with a hose
The picture below shows an S1-200 pump system providing water to irrigate a field. The pump is installed in the water source which is in this example a pond (A). A person is standing with a hose in their hand irrigating any kind of crop (B). Basic components of an S1-200 pump system are installed: Pump (1), controller (2) and PV modules (3).

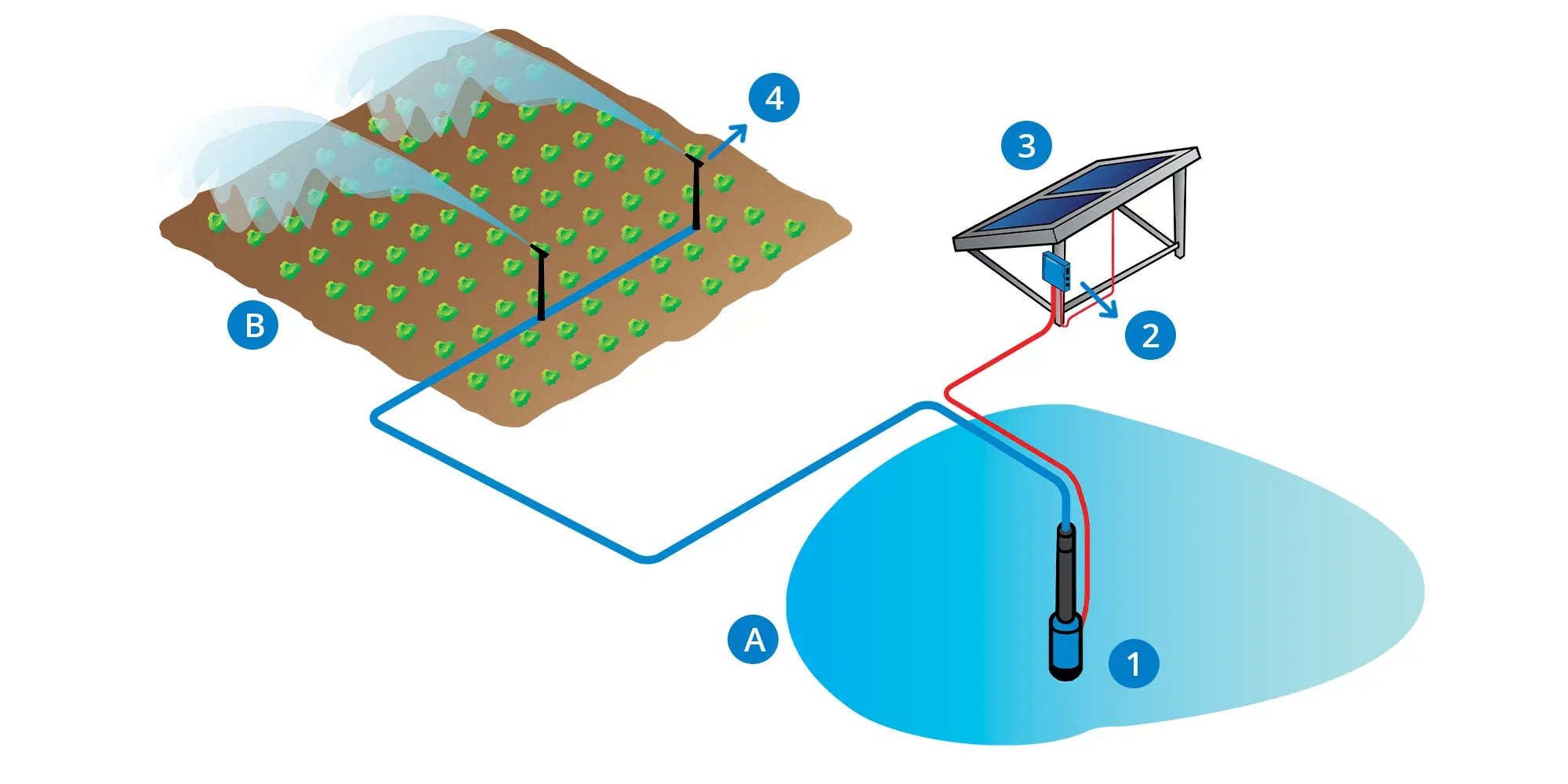

S1-200 used to irrigate a field using sprinklers
The pump is installed in the water source, which in this example is a pond (A) and will be used to irrigate a field (B) under pressure using a sprinkler irrigation kit (4). The basic components of an S1-200 pump system are installed: Pump (1), controller (2), and photovoltaic modules (3).

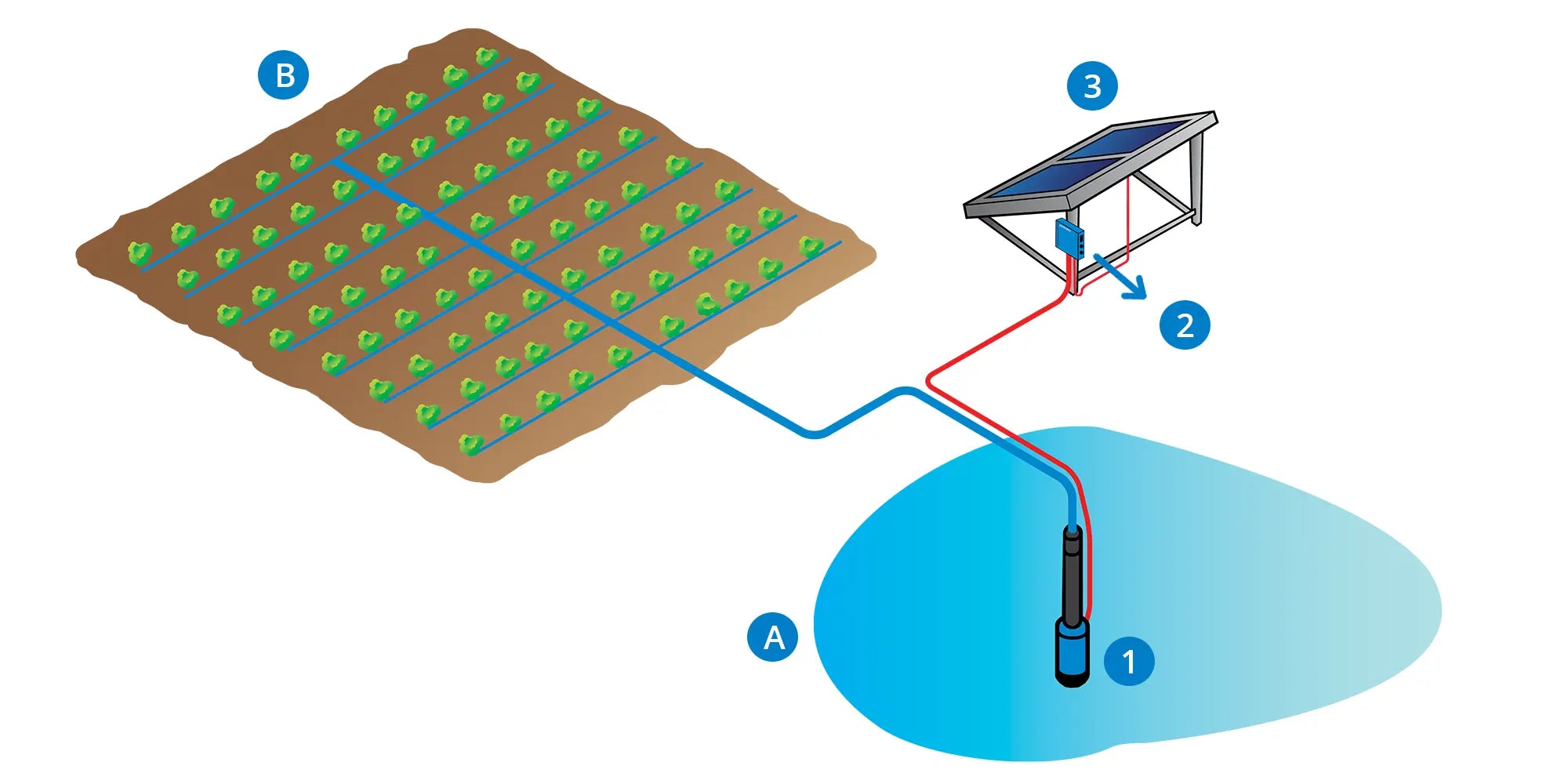

S1-200 used in drip irrigation
The pump is installed in the water source, which in this example is a pond (A) and will be used to irrigate a field (B) using a drip
irrigation system. The basic components of an S1-200 pump system are installed: Pump (1), controller (2) and PV modules (3).

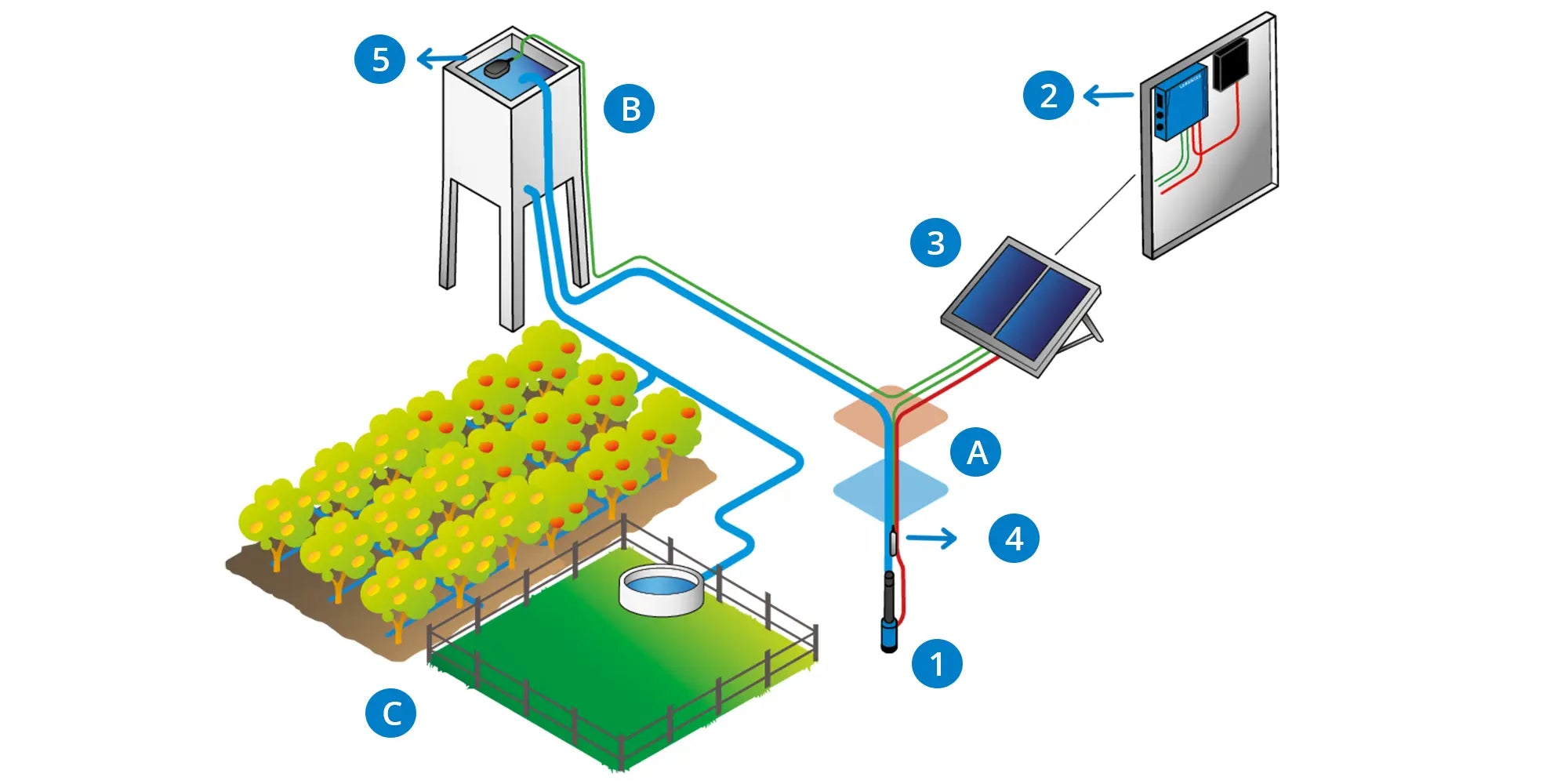

S1-200 used to fill a tank
The picture below shows an S1-200 pump system which pumps water up to a tank (B). By gravity the water is used to irrigate a field and to fill a reservoir (C). The pump is installed in the water source which is in this example a well (A). Basic components of an S1-200 pump system are installed: Pump (1), controller (2) and PV modules (3). In addition to that a dry run protection (4) and a tank full switch are installed (5).

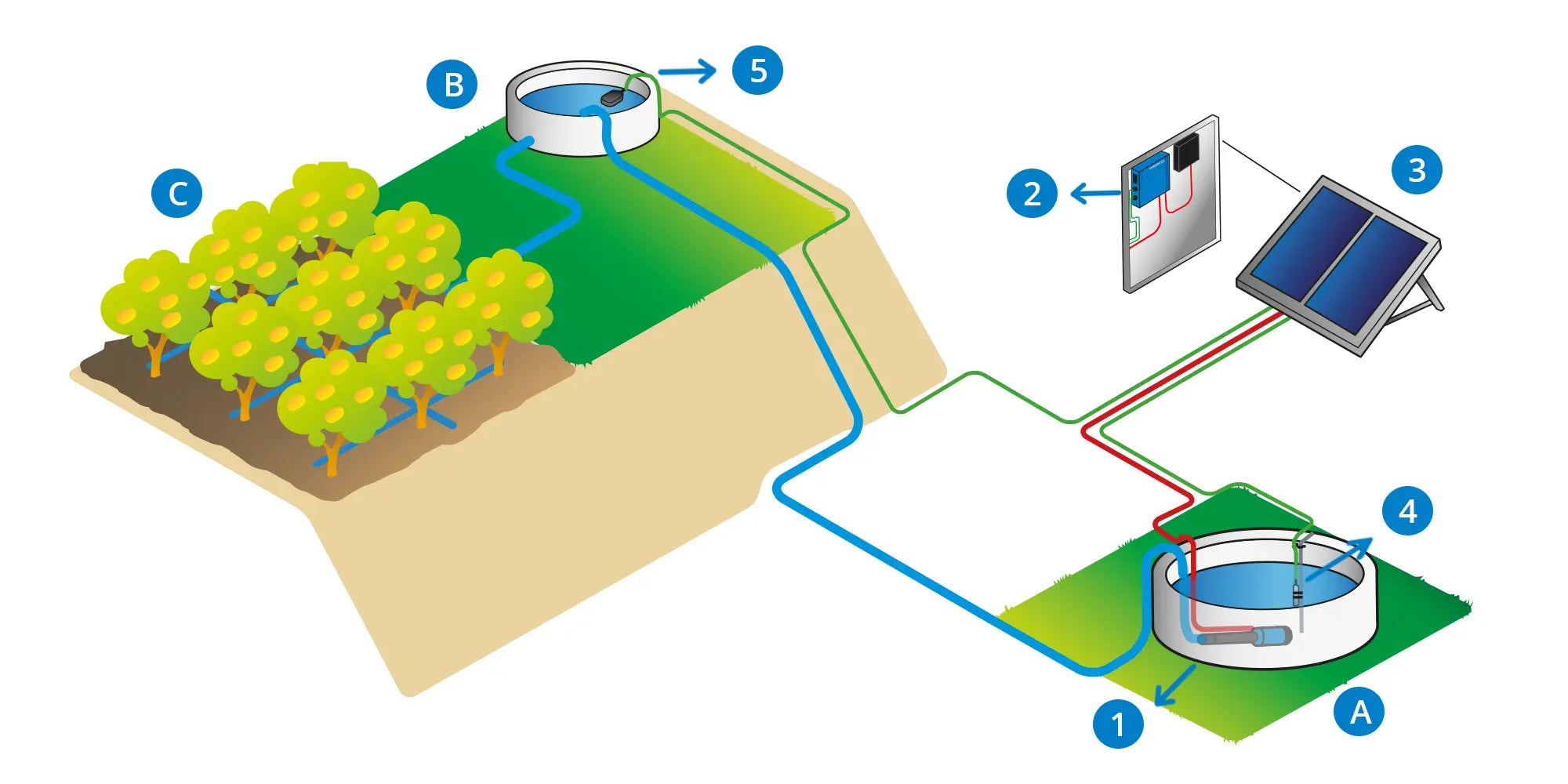

S1-200 used to transfer water from one tank to another tank located at a higher location
The following image shows an S1-200 system pumping water from one tank (A) to another tank (B) that is located uphill, to finally irrigate a field (C). The basic components of an S1-200 pumping system are installed: Pump (1) - in this example in horizontal position -, controller (2) and PV modules (3). In addition, a dry run protection (4) - note that it is installed vertically - and a tank full switch (5) are installed.

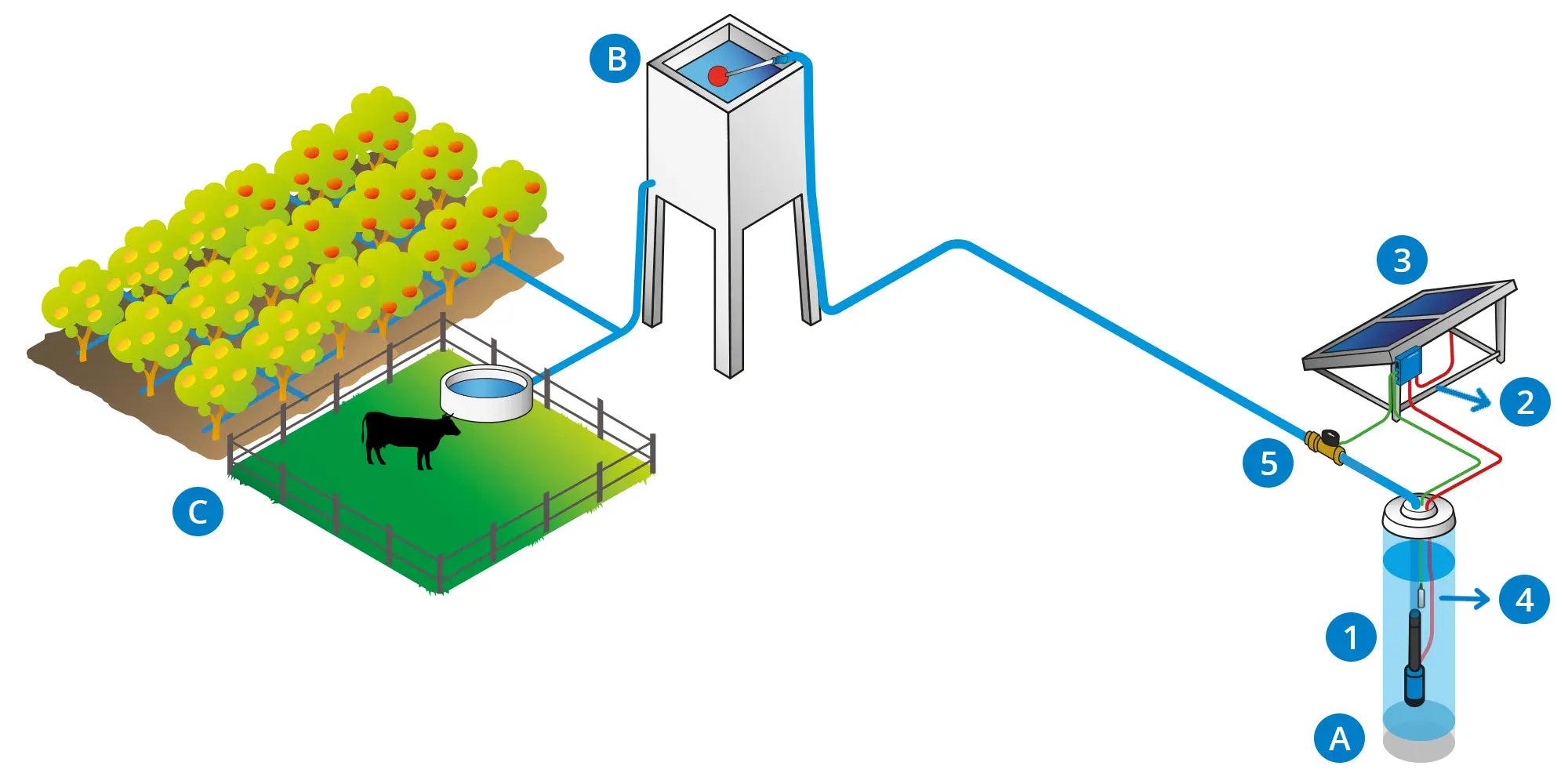

S1-200 used to pump water from a well to a tank located in a remote location
The following image shows an S1-200 system pumping water from a well (A) to a tank with a float valve (B) that is located too far away to use the LORENTZ full tank switch accessory, and finally supplying water to a field and livestock by gravity action (C). The basic components of an S1-200 pumping system are installed: Pump (1), controller (2) and PV modules (3). In addition, a dry run protection (4) and a remote tank switch are installed on the discharge hose (5). The float valve is not included in the LORENTZ accessory portfolio.
Anywhere, any source fixed or portable
- Easy, rapid installation
- Pump from any source, without priming
- Light weight, ‘plug and play’ for easy portability
- Ideal for small-scale applications
- Irrigate small areas for lawns, crops, or gardens
- Provide drinking water for livestock
- Water transfer or circulation
